Thermocouple/RTD Universal input Digital Temperature Controller Voltage pulse output

Types:KCMA-91W KCM-91W KCME-91W KCMF-91W KCMG-91W KCMD-91W KCMA-92W KCM-92W KCME-92W KCMF-92W KCMG-92W KCMD-92W

Introduction:
Service Life: Use the Digital Controller within the following temperature and humidity ranges:
Temperature: −10 to 55°C (with no icing or condensation), Humidity: 25% to 85%.
●Can be connect the following sensors and signals to the universal input(K.E,J.T.S,R,B,N,PT100).
●Can be easily set the optimum PID constants by performing AT (auto-tuning) with the limit cycle method,or ON-OFF Control Mode.
●Can be output an alarm when the deviation, process value, set point, or manipulated value reaches a specified value.
●With any model that supports communications, you can use communications , Modbus-RTU
●With any model that provides a transfer process value as a 4 to 20 mA or 1 to 5 V transfer output.
Input Sensor:
●Temperature input: CU50(–50.0~150.0℃)/PT100(–199.9~600.0℃)/K(–30.0~1300℃)/E(–30.0~700.0℃)/J(–30.0~900.0℃)/T(–199.9~400.0℃)/S(–30~1600℃)/R(–30.0~1700.0℃)/WR25(–30.0~2300℃)/N(–30.0~1200.0℃)
●Current input (analog input): 4 to 20 mA DC, 0 to 20 mA DC
Control Outputs:
●Relay output
●Voltage output (for driving SSR)
●PID linear current output(4-20mA /0-10v)
●Zero-cross output(for driving Triac)
(A single functional)
Alarms:
●One Relay output
●Two Relay outputs
Dimensions:
h×w×d(Unit: mm) 160×80×85 152×76;
S:80×160×85 152×76;
A:96×96×110 92×92;
D:72×72×110 68×68;
E:48×96×110 44×92;
F:96×48×110 92×44;
G:48×48×110 44×44;
R(din35): 88mm ×72mm ×59mm 。
Transfer Output:
(Optional features)With any model that provides a transfer process value as a 4 to 20 mA or 1 to 5 V transfer output.
Communications:
(Optional features)RS485/RS232 Modbus RTU Communications

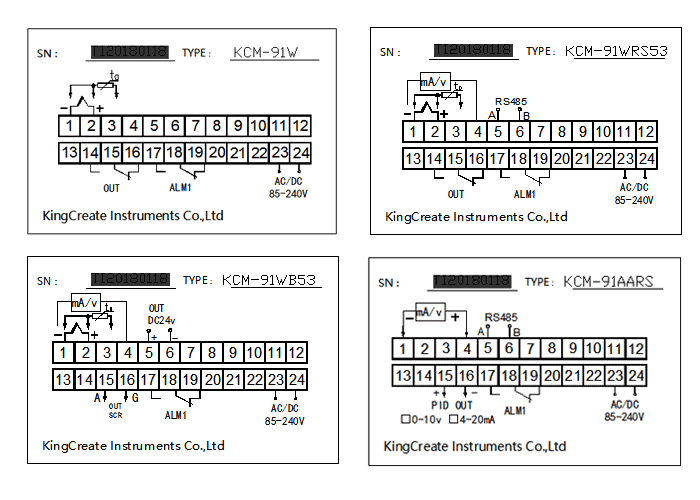

Terminal Arrangement:

Register Address Code Name Manual Setting range Ex-Factory
0x00 SP Setting value Set the temperature set value (SV) which is the target value for control Determined by P-SL P-SH -
0x01 AL-1 Alarm 1  Please refer to ALP for the alarm mode suitable.
Alarming when the program sections is breaking up.
-
0x02 AL-2 Alarm 2 -
0x03 Pb PV Bias The value set in the PV bias is added to the actual input value to correct the input value. ±20.0 0
0x04 KP Proportional band Set when PI or PID control is performance. For heating / cooling PID action.
When P=0,the meter is ON/OFF control
0-3000 100
0x05 KI Integral time Eliminates offset occurring in proportional control. 0~3000 500
0x06 KD Derivative time Prevents overshoot and/or undershoot caused by integral action effect.. 0~2000S 100S
0x06 KT PID control cycle. Control response time 2~120 20
0x07 FC Digital Filter This is a 1st-order lay filter by software prepared in order to reduce fluctuations of measured value (PV) by noise. 0~50 20
0x08 Hy Differential gap When the control is ON/OFF control(P=0)
Relay contact may repeat its turning ON and OFF due to input fluctuation if measured value (PV) is near the alarm set value.the differential gap setting can prevent the relay contact from ON or OFF repetition.
0.1~50.0 0.5
0x09 dp Decimal point position selection Set the position of the decimal point for the measured value to be displayed.   0~1 0
0x0A outH Output limiter high Output limiter low to 200   200
0x0B outL Output limiter low 0 to Output limiter high   0
0x0C AT Autotuning (AT) with learning function 1: Autotuning (AT) with learning start
0: Autotuning (AT) with learning stop
Turns OFF automatically when the AT with learning function is completed.
0~1   0
0x0D LocK Set data lock LOCK=0, Set value (SV) and parameter can be set.
LOCK=1,Only set value (SV) can be set.
LOCK>1, Set value (SV) and parameter cannot be set.
0~50   0
0x0E ts Input type1 Cu50(–50.0~150.0℃);
Pt100 (–199.9~600.0℃;  )
K( -30.0~1300℃);
E( -30.0~700.0℃);
J (-30.0~900.0℃);
T( -199.9~400.0℃);
S( -30~1600℃);
__ K
0x0F Input type2 0~5V/0~10mA;
1~5V/4~20mA;
__   4-20mA
0x10 OP-A Control output 0:no output
1:Relay output
2:Voltage output (for driving SSR)
3:Zero-cross output(for driving Triac)
4:PID linear current output(4-20mA /0-10v)
(A single functional)
0~7 READ ONLY
0x11 OP-B AUX  output Opt. 0:no output;
1:RS232 or RS485;
2:contact the micro-printer; ‘
3:transmitter 0~10mA
4:transmitter4~20mA
0~4 READ ONLY
0x12 ALP Alarm type 0: Alarm function OFF;
‘1’ Process high alarm;
‘2’ Process low alarm;
‘3’Process high and low alarm.(H1 and L2)
‘4’ Deviation High alarm ;
‘5 Deviation low alarm;
‘6’Deviation High and Low alarm..(H1 and L2)
‘7’ Deviation high/low alarm;
‘8 Band alarm.
0~10 According to the request
0x13 COOL System function Opt. ‘0’:reverse control(heating)
‘1’:positive control(cooling)
0~1 0
0x14 P-SH Range high The control is displayed after the Input type and Input range. P-SL~9999
1300
0x15 P-SL Range low -1999~P-SH 0
0x16 Add

Address

Communication address can be set from 0 to 255 0-255 1
0x17 Baud Communication speed 1200;  2400;  4800;   9600; ____ 9600
